Automatic Glass
Fragmentation Test Device
Victus analyzes tempered glass fragmentation in 6–8 seconds with AI precision — delivering EN 12150-compliant results with a single button press.
Automated EN 12150-1 Glass Fragmentation Analysis
Victus replaces manual inspection with automated AI analysis — eliminating human error and delivering consistent, standard-compliant results every time.
Place the Sample
Position the broken tempered glass so the area to analyze falls within the 5×5 cm reference frame.
Run Analysis
Press Analyze — the AI engine captures the image, counts particles, and classifies each fragment in 6–8 seconds.
Review Results
Color-coded fragment map and numerical summary appear instantly on screen for fast quality decisions.
Export PDF Report
Generate a standardized PDF report with one click — shareable, archivable, and multilingual.
Color-Coded Fragment Classification
Every detected fragment is automatically classified by type and highlighted with a distinct color — giving operators instant visual clarity.
Full Fragment (Yellow)
Particles fully within the 5×5 cm reference area — counted as whole units.
Half Fragment (Cyan)
Particles touching the boundary — counted as half units per EN 12150.
Largest Area (Green)
The fragment with the greatest surface area — highlighted for inspection.
Longest Fragment (Red)
The fragment with the greatest linear dimension — key safety indicator.
Critical Fragment (Blue)
Meets both largest area AND longest dimension criteria simultaneously.
Built for Industrial Use
Every feature of Victus is designed around the real needs of glass manufacturers, quality labs, and production floors.
6–8 Second Analysis
Dramatically faster than manual counting — process more samples with consistent accuracy throughout the shift.
Multilingual PDF Reports
Generate reports in TR, EN, DE, FR, IT or ES — interface and report language can be set independently.
Database Integration
Automatically push measurement data to MySQL, MSSQL, or PostgreSQL — no manual data transfer.
SMB Network Sharing
Reports and images are automatically saved to a shared network folder — accessible across your facility.
Glass Type Presets
Pre-define glass thicknesses (4–8 mm) and temper types (flat, curved, complex) to speed up reporting.
EN 12150 Compliant
Results meet the international standard for tempered glass safety — suitable for certification and audit.

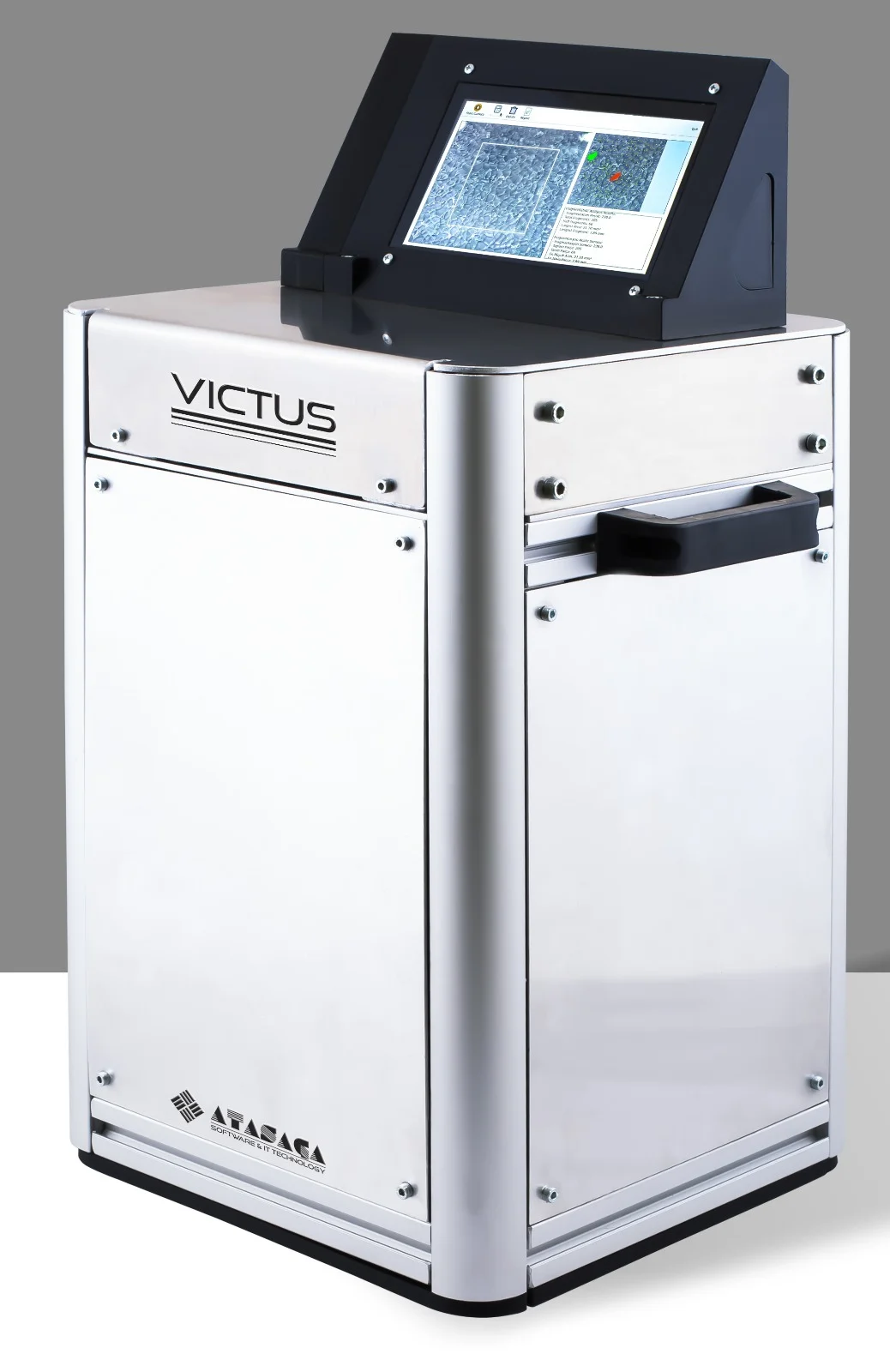

Built Tough, Precise by Design
Victus is housed in an electrostatic-coated aluminum enclosure — engineered for durability on the production floor.
Performance
- Analysis Speed 6–8 seconds
- Measurement Area 5 × 5 cm
- Camera 12 MP Industrial
- Processor Quad-core ARM A76
- Display 7″ Touch LCD
Connectivity
- Databases MySQL · MSSQL · PostgreSQL
- Export PDF · CSV · JSON
- Network SMB · Ethernet · USB
- Languages TR · EN · DE · FR · IT · ES
Compliance & Build
- Standard EN 12150 / IEC 61010-1
- Warranty 2 Years
- Enclosure Electrostatic aluminum
- Dimensions 284 × 282 × 570 mm
- Weight 8.5 kg
